Quick Details
Condition: New
Type: Pipe Welding Machine
Pipe Material: Stainless Steel
Application: Energy Supply Pipe
Production Capacity: 1-10m/min
Place of Origin: Guangdong, China (Mainland)
Brand Name: YJ
Model Number: YJ- 40(small)
Voltage: 380V
Power(W): 5.5kw
Dimension(L*W*H): 7600*1150*600mm
Weight: 6T
Certification: ISO9001
Warranty: 1year
After-sales Service Provided: Engineers available to service machinery overseas
Horizontal axis diameters: 40mm
Vertical axis diameters: 25mm
Range: 6-38mm
Thickness: 0.25-1.5mm
Motor power: 5.5kw
Wheel head: 3x3kw
Straigtener: 2set
Main engine Size: 7100x1080
Keyword: metal pipe welding machine
Packaging & Delivery
| Packaging Details: | Export standard Batten and steel wire must be used for fixing the machine to prevent the rough transport for Welding Pipe Mill Machine |
|---|
| Delivery Detail: | Shipped in 30 days after payment |
|---|
Product Description

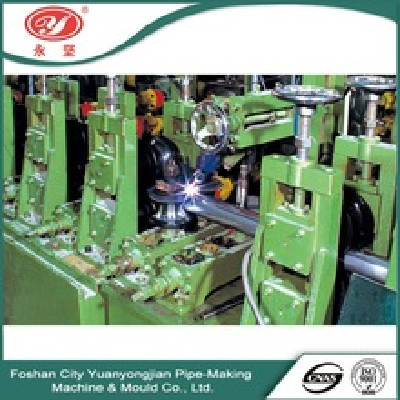

1. Product Description of metal pipe welding machine
1). Name: Automative Stainless Steel Pipe Making Machine
2). Application: Mainly used for decoration, products, appliances stainless
steel pipe and carbon steel (round tube, squre tube, shaped tube) production.
3). Automated production process: The open-book, play marks, forming, welding,
grinding, sizing, straightening, fixed length, cut, splice and othercontinuous molding
process.
4). Machinery main components: uncoil machine, forming welding machine,
grinding machine, sizing machine, frame straightening, cutting machine, finished
frame.
5).Parameters:
| Item | Horizontal axis diameters(mm) | Vertical axis diameters(mm) | Range | Thickness | Motor power | Wheel head | Straigtener | Main engine Size |
| YJ-30 | Φ30mm | Φ20mm | Φ5-Φ25mm | 0.25-1.0mm | 5.5kw | 3x3kw | 2set | 6600x1050 |
YJ-40 Small | Φ40mm | Φ25mm | Φ6-Φ38mm | 0.25-1.5mm | 5.5kw | 3x3kw | 2set | 7100x1080 |
| YJ-40 | Φ40mm | Φ25mm | Φ9.5-Φ50.8mm | 0.25-1.8mm | 7.5kw | 3x3kw | 2set | 7600x1150 |
| YJ-40Big | Φ40mm | Φ25mm | Φ12.7-Φ63.5mm | 0.25-2.0mm | 11kw | 3x3kw | 2set | 7800x1150 |
| YJ-50 | Φ50mm | Φ30mm | Φ25.4-Φ76.2mm | 0.4-2.5mm | 15kw | 3x3kw | 2set | 9000x1200 |
| YJ-60 | Φ60mm | Φ40mm | Φ50.8-Φ114mm | 0.7-3.0mm | 18.5kw | 3x4kw | 2set | 11000x1500 |
| YJ-80 | Φ80mm | Φ50mm | Φ76-Φ168mm | 1.0-4.0mm | 36.5kw | 3x5.5kw | 2set | 12900x2100 |
| YJ-100 | Φ100mm | Φ70mm | Φ114-Φ219mm | 1.5-4.5mm | 45kw | 3x5.5kw | 2set | 14000x2300
|
6).Warranty: Provide one year warranty (man-made damage without insurance, the
vulnerability of non-insurance).
2.Our services
1. Pre-sales Services:
1) Answer the customers' questions about investment consulting on the field of
stainelss steel pipe industry.
2) According to the production process requirements, plant management requirements
and the company development, offering factory planning proposals and making plant
arrangements for the customers, such as functional area about production, storage,
office, living , yard, etc...
3) Discuss the development trend of the global stainless steel industry as a whole with
customers, particularly analysis and forecast the status as well as the outlook, trends,
development, import and export, competition pattern of Chinese stainless steel
industry.
4) Customers can visit the production line of stainless steel pipe in our factory for free.
3. After sales Services:
1). Provide the relevant shipping charge information, take charge of loading and the
relevant shipping procedure, focus on the safety of the goods and the shipping time.
2). Provide the technical documents about machinery installation, maintenance,
operation and so on.
3). Provide the technical support about the machinery installation, maintenance,
operation and so on.
4). Provide the equipment list of the main components.
5). Responsible for the equipment installation and commissioning guidance.
6). Provide one year warranty (man-made damage without insurance, the vulnerability
of non-insurance).
7). Provide post-paid warranty service after shelf life.
8). Foshan charged affairs for the customers: apply for the certificate, find the relevant
products of this industry, find the master worker, provide the information we know of
the relevant weld pipe industry.
9). Provide our customers with limited space for shortterm storage of other company's
products, provide charged affairs for express and shipping.
About us
Professionally producing s welded pipe mold, welded pipe machinery, high-frequency welded pipe machine, stainless steel pipe-making machine, polishing machine, composite pipe machine, bright solution annealing equipment, other ancillary equipment for stainless steel production line, Foshan Yongjian Pipe-making Mold & Machine Co., Ltd. is able to design and develop various new products with advanced production equipment, strong technical force and modern management system and the equipments are selled to all over the country.
After years of painstaking research, the brand “Yongjian” established by the company has solved the phenomenon during the pipe-making such as strain, wrinkles and nail pattern, and made the rate of repairing zero after mold’s processing, which avoids trouble for customers and decreases repairing costs.
With corporate phylosophy of wining by technology and seeking for greater perfection, the company keeps forging ahead by scientific rigorous innovative work, and is willing to make more contribution to the development and prosperity of stainless steel industry via top quality products and service. Exploring the latest news with keen market, led by market demand, customer-oriented, the company warmly welcome all friends to join us and create bright future together.
